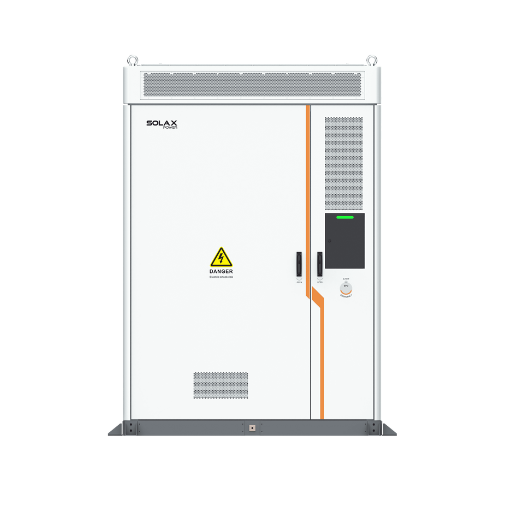

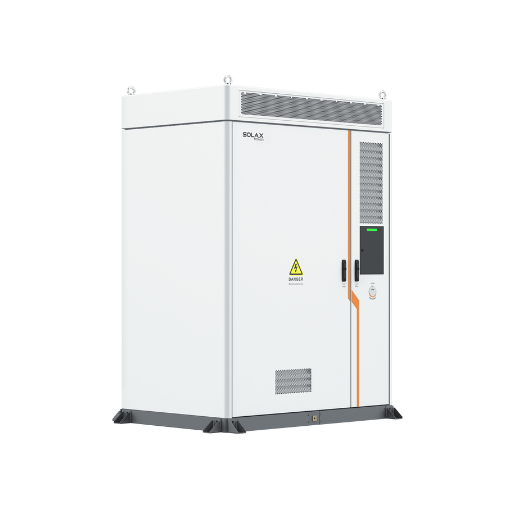

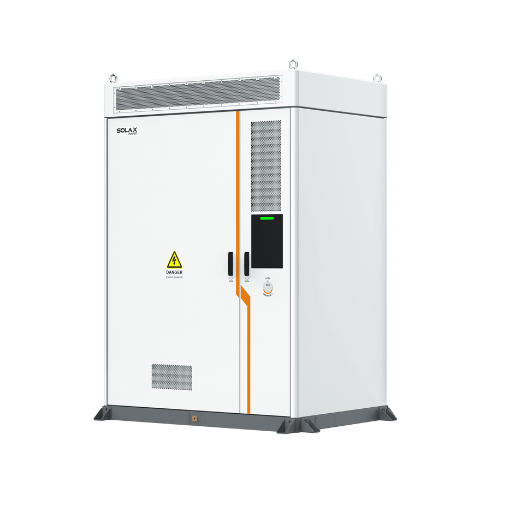

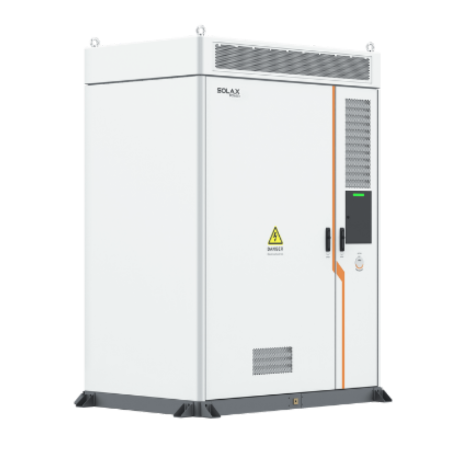

ESS-TRENE 风冷储能

100kW/215kWh | 空气冷却储能系统

观看视频
"在线视频平台" 资料下载

Product Advantage

Equipped with a full-stack in-house developed BMS, EMS, and PCS, it offers seamless integration and one year of historical data storage 黑桃tv直播. With scalable architecture and support for three-phase unbalance output, the system meets complex energy demands with consistency, reliability, and future-ready design.

Assured Reliability (黑桃tv)

Four-level fire safety protection
IP66 for inverter, lP55 for cabinet
LiFePO4 battery cell & high-performance processors
Type ll SPD on AC side
Advanced fault detection and response
Support three-phase unbalance output

High Performance

High power density, compact design
Scalable up to megawatt-hours
Optimised space utilisation

"在线视频平台" Smart Management

Advanced energy management system
VPP ready with SolaX Cloud (2030.5, OpenADR)
Support micro-grids and diverse scenarios
Smart Schedule, Smart Scene and 7×24h TOU
Wireless meter compatibility

Flexible Adaptability

Supporting grid-connected and off-grid (with SolaX switching cabinet)
Full-stack self-developed BMS, EMS, PCS & SolaXCloud
One year of historical data storage

"黑桃tv直播" Product Parameters

TRENE-P100B215

TRENE-P100B215 (黑桃tv视频资源)

AC SIDE (ON-GRID)
Rated output power 100 kW
Rated AC voltage 3 / N / PE, 220 / 380 V 3 / N / PE, 230 / 400 V
Rated AC frequency 50 Hz / 60Hz
DC SIDE
Battery type LFP / 280Ah
Battery capacity 215 kWh
Rated battery voltage 768 V

SYSTEM PARAMETER

Dimensions (W x H x D）	1680 ×2420 × 1200 mm
Net weight	2800 kg
Operating temperature range	-30 ~ 50 ℃(＞45℃ derating)
Max. operating altitude	3000 m
Cooling concept	Smart air cooling
Ingress protection	IP55
