工商业储能系统

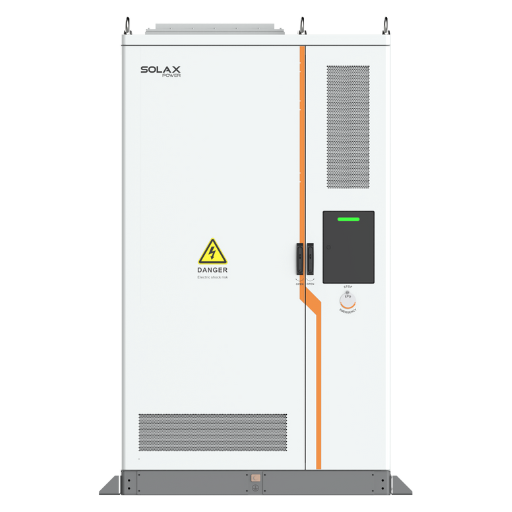

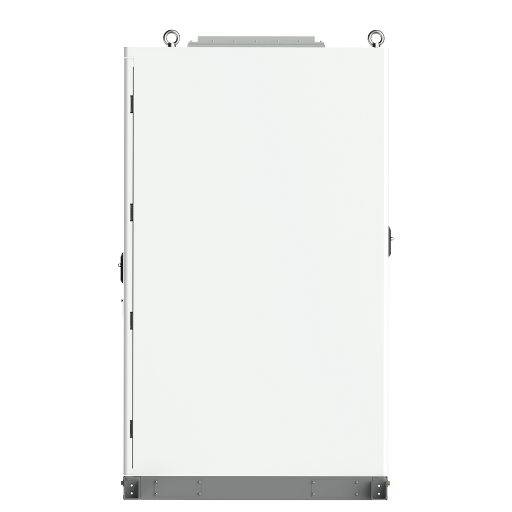

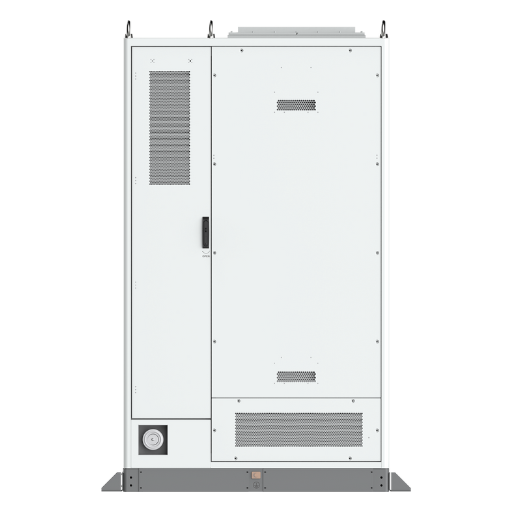

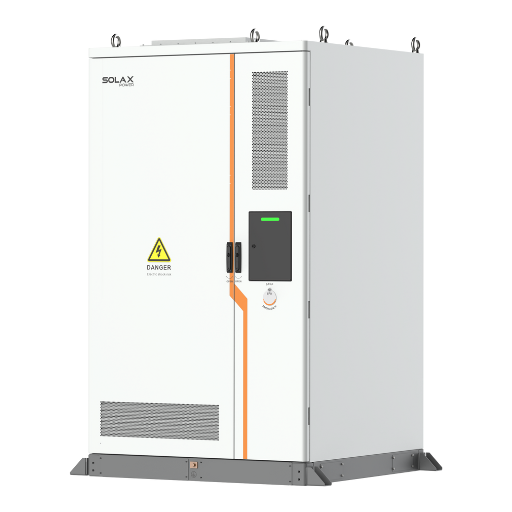

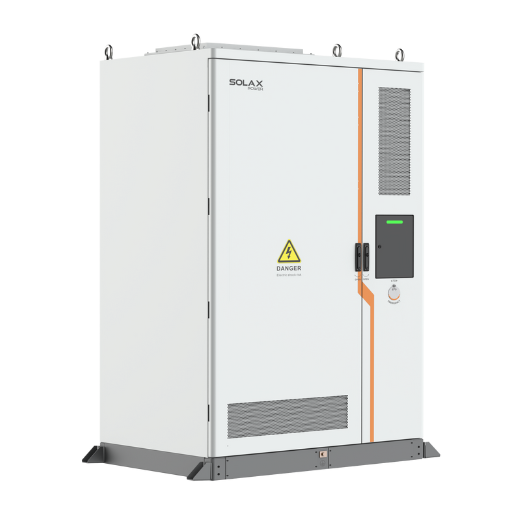

黑桃tv - ESS-TRENE 液冷储能
- 125kW/261kWh | 液冷储能系统
ESS-TRENE 液冷储能系统是一款高效工商业储能黑桃tv视频资源，具备多重安全防护（IP55等级）和液冷热管理技术。系统效率高达99%，支持模块化扩展（最高3.44MWh），通过艾罗云平台实现AI智能能源优化。宽电压范围（1000V）设计确保与各类商业场景无缝对接
- 观看视频
产品优势
TRENE储能系统采用先进液冷技术，将电芯温差控制在3°C以内 黑桃tv高清播放，确保系统始终保持高效性能，搭载高性能314Ah磷酸铁锂电芯，保障长期稳定运行，系统内置四级消防机制，全面筑牢安全防线，结合SolaX云平台智能能量管理，实现实时监测与便捷运维，是工商业储能的理想之选。
"在线视频平台" 安全保障

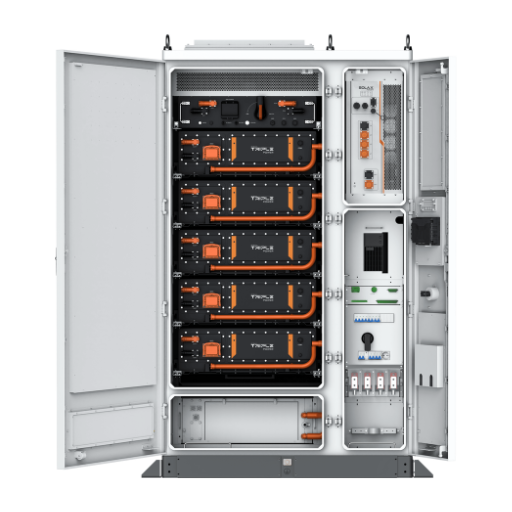

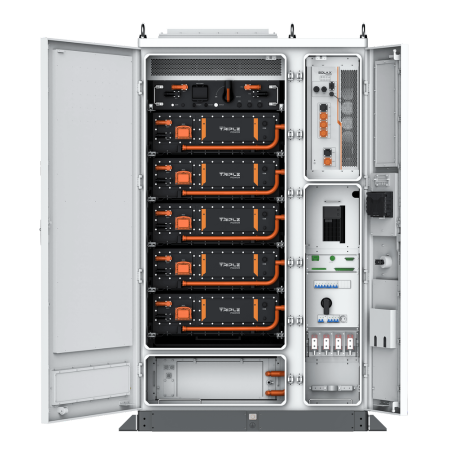

电气柜与电池柜分离设计 黑桃tv直播，防止热失控风险.
多层次保护系统，全面确保电池安全
IP55户外柜体，并可选配C5防腐蚀处理
智能设计
全部预组装，减少现场工作量 在线视频平台，加速调试流程.
高效散热设计 黑桃tv，延长电池寿命并提升系统放电能力.
支持1小时内完成备件更换 黑桃tv在线观看，减少停机时间.
高效性能
适用于大规模和高需求的储能应用场景
无缝支持光伏集成. 并网/离网功能及智能能量管理 黑桃tv高清播放.
智能液冷温控系统 黑桃tv直播，提升效率并延长电池循环次数.
黑桃tv视频资源 - 灵活适应
支持多种交付形式，包括柜内安装，集装箱化黑桃tv视频资源及一体化方案 在线视频平台.
配备本地控制及远程监控平台
快速系统恢复能力，有效降低运维成本 黑桃tv.
"黑桃tv直播" Product Parameters
在线视频平台 - TRENE-P125B261L-E- AC SIDE (ON-GRID)
Rated AC power 125 kW Rated AC voltage 3 / N / PE, 220 / 380 V 3 / N / PE, 230 / 400 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 261 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 1350 x 2355 x 1350 mm Weight 2810 kg Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55 If there is any change in product size and parameters, please refer to the latest information without prior notice.
- TRENE-P124B261L-E
- AC SIDE (ON-GRID)
Rated AC power 124.9 kW Rated AC voltage 3 / N / PE, 220 / 380 V 3 / N / PE, 230 / 400 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 261 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 1350 x 2355 x 1350 mm Weight 2810 kg Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55 If there is any change in product size and parameters, please refer to the latest information without prior notice.
- TRENE-P249B1044L-4H
- AC SIDE (ON-GRID)
Rated AC power 249.8kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
- TRENE-P250B1044L-4H
- AC SIDE (ON-GRID)
Rated AC power 250 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
- TRENE-P499B1044L-2H
- AC SIDE (ON-GRID)
Rated AC power 499.6 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 13 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
- 在线视频平台 - TRENE-P500B1044L-2H
- AC SIDE (ON-GRID)
Rated AC power 500kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 13 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
- TRENE-P249B1044L-4H
- AC SIDE (ON-GRID)
Rated AC power 249.8kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
- TRENE-P250B1044L-4H (在线视频平台)
- AC SIDE (ON-GRID)
Rated AC power 250 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
